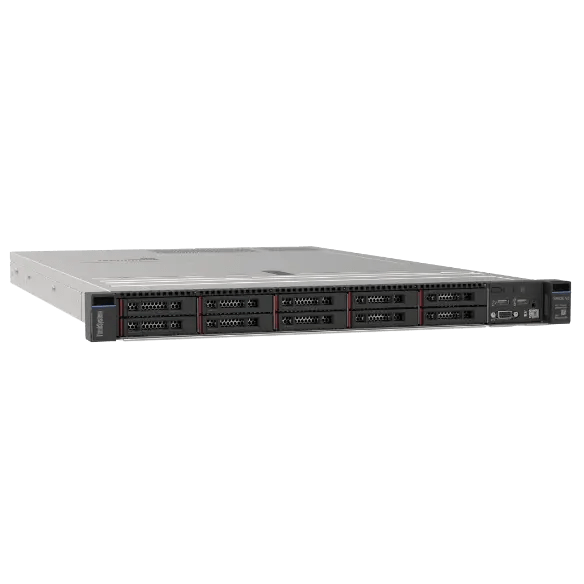

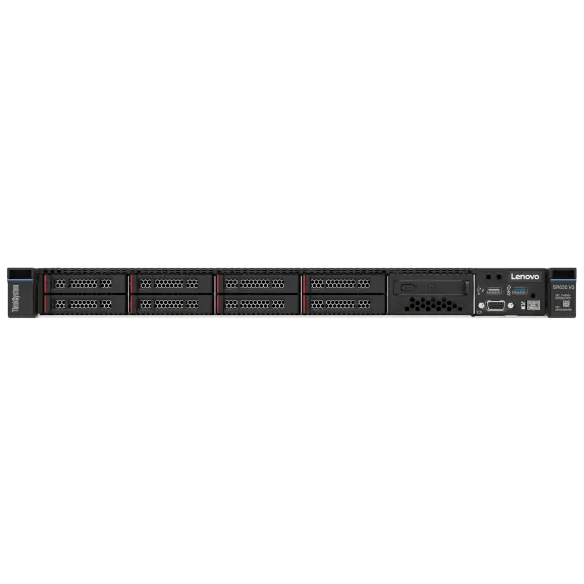

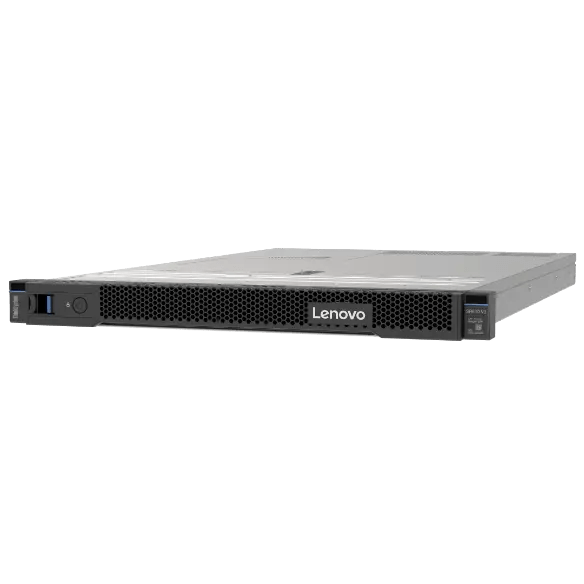

Name: ThinkSystem SR630 V3 Rack Server | Live365days.com
Price: 5666.43 USD
Availability: InStock

Description

Increased Performance and Reduced Power Consumption With a Dash of Wow

The dual processor ThinkSystem SR630 V3 server is a 1U server maximized for performance. With the 4th Gen Intel^®Xeon^® Scalable processors it provides up to 59% better performance over the previous generation. When you factor in 32 DIMMs of DDR5 memory, PCIe Gen5 technology, up to EDSFF E1.S drives thru direct NVMe, it offers the speed and density desired by cloud service providers and enterprises

Lenovo innovation increases performance in the SR630 V3 while reducing power consumption by adding in optional Neptune™ liquid cooling.

For more information on Neptune and SR630 V3 solutions visit: www.lenovo.com/us/en/servers-storage/neptune/

Next-Gen Workloads Handled at the Flip of a Switch

Processing power is king when it comes to new applications and technology. Applications are evolving and requirements are changing creating next-gen workloads. Cloud Service providers and Enterprise applications require the ability to scale up and down easily to efficiently manage these workloads and their client’s needs. The SR630 V3 is designed with flexible storage, support for PCIe Gen5, intuitive data management, and security.

Easy Management and Enhanced Security in One Smart Server

The SR630 V3 includes Lenovo ThinkShield security software. ThinkShield prevents, detects and remediates against attacks, providing security in the supply chain, below the OS in the server, and from the OS to the cloud. The XClarity system manager simplifies infrastructure processes saving time during deployments, handling faults, and adding new servers to the network. It also adds security by monitoring log events and letting you choose from 3 security modes.

Intel On Demand Processor Licensing Enabled

Intel^® On Demand (previously SDSi) is a new service introduced with 4^th and 5^th Gen Intel^® Xeon^® Scalable processors. It enables expanding or upgrading accelerator and hardware-enhanced features on most 4^th Gen Xeon processor SKUs. Supported features: Intel^® Dynamic Load Balancer, Data Streaming Accelerator, In-Memory Analytics Accelerator, Quick Assist Technology, and Software Guard Extensions.

Form Factor

1U rack

Processor

Up to 2x 4^th Gen Intel^® Xeon^® Scalable processors, up to 60 cores and 350W TDP

GPU Support

Up to 3x 75W GPUs for graphics-intensive workloads

Memory

Supports up to 32x TruDDR5 3DS/RDIMMs

Drive Bays

Up to 4x 3.5″ or 12x 2.5″ or 16x EDSFF E1.S drives
Front: up to 4x 3.5 / 10x 2.5″ /16x EDSFF E1.short hot swap drives
Rear: 2x 2.5″; 7mm SATA/NVMe hot-swap boot drives, support RAID
Internal 2x M.2 SATA/NVMe boot drives, support RAID
Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)

Expansion Slots

Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn’t occupy a standard PCIe slot

Network Interface

LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters

Ports

Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional)
Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional)

HBA/RAID Support

SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.

Power

Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum

System Management

Lenovo XClarity Controller

OS Support

Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information.

Limited Warranty

1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades.

Datasheet

Lenovopress.com/ds0142
